High performing rails from CLT panel waste for advanced prefabricated volumetric timber structures – step 1

Category: Hypothesis testing projects

The project ran between November 2020 and May 2021.

The aim of the project has been to confirm the hypothesis that boards sawn from residual products from CLT panels can be used to develop and increase the volume of advanced housing construction in wood. Aspects treated to achieve the goal mainly relate to material characterization and production-related issues.

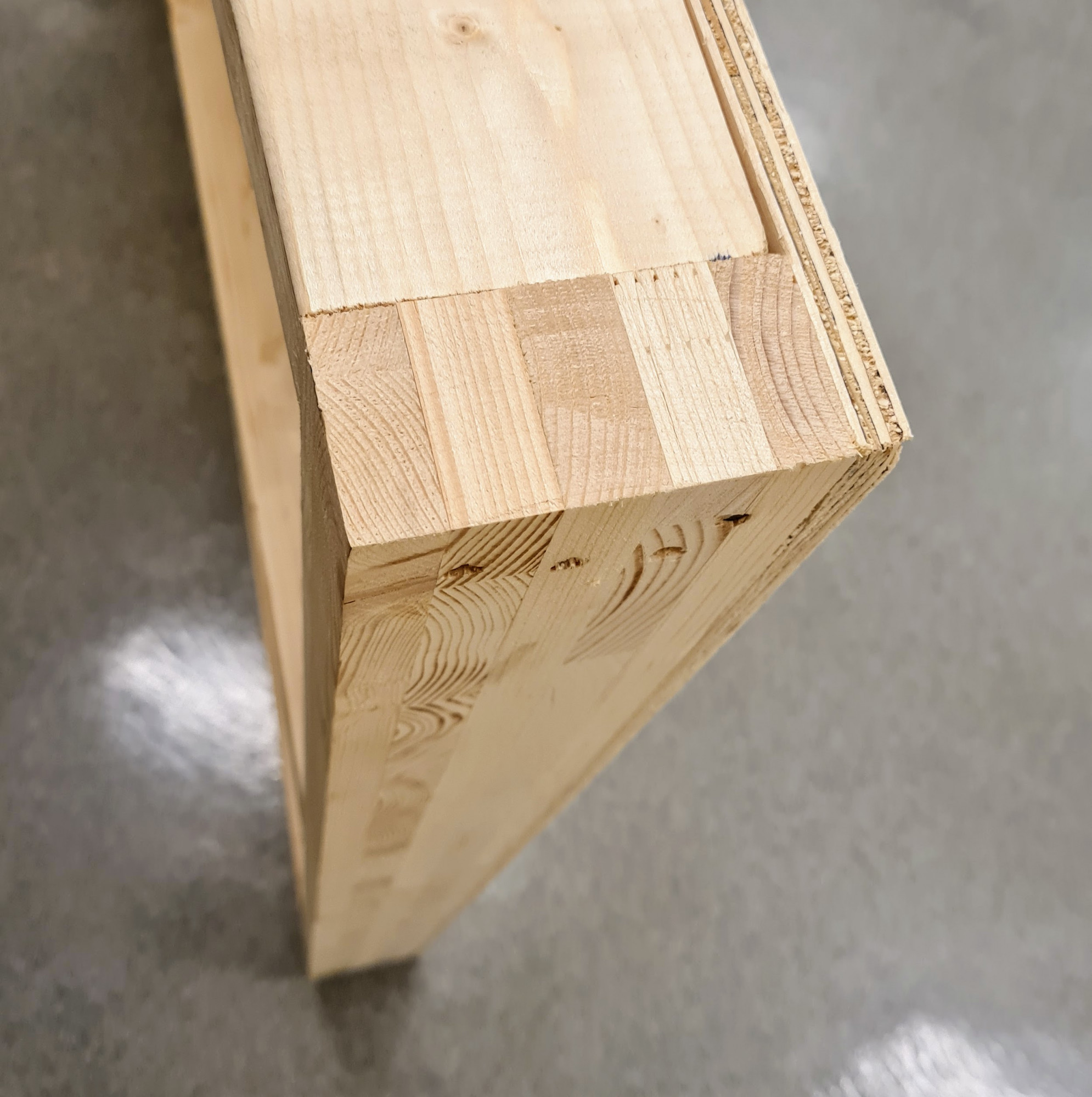

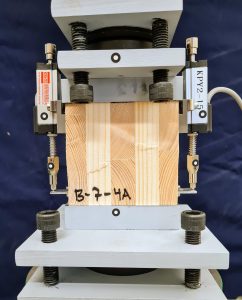

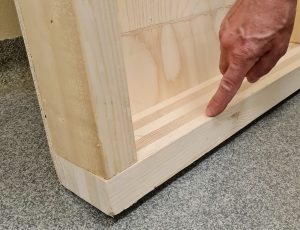

Boards cut out from CLT-panel waste (e.g. door and window openings) have been produced at a pulp in Gruvön, Grums, and delivered to university for characterization, but also to three companies producing light frame volumetric elements for residential housing to study their performance in production. In both cases, the product exceeds the expected performance. The stiffness is higher and strength is 5-6 times higher than structural timber of quality C24 typically used today.

The companies involved in the evaluation of the product in a production environment reports very positively from the experience.

Participants

AB Hilmer Andersson, Dynalyse AB, Karlstad University, Linnaeus University, Moelven Byggmodul AB, Obos Bostadsutveckling AB and Villa Vida AB.

Budget

The project’s total budget was 1 090 000 SEK.

More pictures from the project:



Animations from the project:

https://kauplay.kau.se/media/t/0_qst3yd8z

https://kauplay.kau.se/media/t/0_57v8b04n

https://kauplay.kau.se/media/t/0_a6ci3a6u



Read about High performing rails from CLT panel waste for advanced prefabricated volumetric timber structures – step 2.
